Knowledge itself is power.

- Sir Francis Bacon, of heresies


5.1 RESOLUTION OF DIGITAL IMAGE: The resolution of a digital image is defined in terms of pixel per inch (ppi). Pixel is the basic element of a digital image which is square in shape and uniform in color. The quality of an image is positively related to the number of square pixels per inch. When talking about the resolution of a digital image, either a digital photo or an image generated by software, only the original pixel density at 1 to 1 scale is significant. It doest not make too much sense to enhance the resolution using else software in anyway.

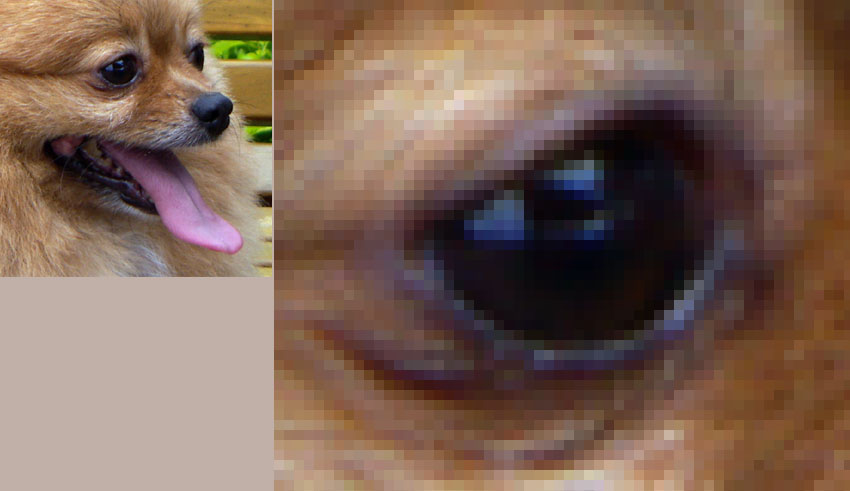

The following diagram shows  the square pixels of a digital foto under microscope .

5.2 RESOLUTION OF INPUT DEVICES 輸入器材精度:

5.2.1 RESOLUTION OF SCANNER 素描器精度:

Both the flatbed scanner and drum scanner scan image pixel by pixel and the resolution is limited by hardware architecture , i.e. the density of censor of CCD, CMOS or diameter of laser beam. The quality of images reproduced by drum scanners which use laser beam in the process of scanning is the best among all.

5.2.2 RESOLUTION OF DIGITAL CAMERA 數碼相機精度:

Digital camera use CCD or CMOS as the light censing unit. The image size is determined by the number of pixels correponding to the total number of light sensitive unit on the CCD or CMOS. Once the photo is taken, the resolution of image is also determined

5.3. RESOLUTION OF OUTPUT DEVICES 輸出器材精度:

5.3.1 RESOLUTION OF MONITOR 顯示器精度:

Limited by the hardware architecture, the default resolution of CRT monitor or LCD monitor is only 72dpi or 96dpi. As it is lower than most of the printers or image setters in use, images shown up on monitor in “actual size” cannot be printed at 1:1 scale without any sacrifice of quality.

5.3.2 RESOLUTION OF PRINTER 打印機精度:

The resolution of printer is defined in terms of dpi (dot per inch) Printers reproduce a pixel with a collection of dots of color ink. For instance, based on the algorithm of postscript language or other printer control language, a 16 x 16 matrix of ink dot pattern is used to represent a 8 bit channel of color. Therefore, for the best result, the printer resolution in terms of dpi must be higher than the image resolution expressed in terms of ppi (pixel per inch). Please refer to 5.4 for details.

5.3.3 RESOLUTION OF IMAGE SETTER 分色片輸出機精度:

5.3.3.1 Representation of half-tone 灰階顯示:

Image-setters work in similar way as inkjet printers except it use laser beam instead of ink to produce pattern of dots on film. With a 16 x 16 matrix of dot pattern, 256 grade scale is simulated.

5.3.3.2 Mixture of Color and Screen Angle 混色及網角:

In multicolor printing, each channel of color of a pixel is represented by a 16 x 16 matrix of dots and a combination of different color dots will reproduce a mixture of color visually under naked eyes. To ensure all the dots are positioned correctly, the matrix of dots must be arrnage in certain angle, i.e. screen angle. For CMYK offset printing, If not otherwise specified, the screen angle for the 4 process colors are 105, 75, 90 and 45 respectively, with emulsion of film facing downward. Refer to "Customer Support 3" for more information

support_3/cmyk_screening_angle_illustration.jpg

5.3.3.3 Quality of Printing and Screen Repetition 打印素質與網線密度:

Image-setters of higher resolution can produce more lines of dot matrix in one inch. Screen repetition (or screen ruling) means the number of dot matrix lines per inch. Usually, for high quality print job, 175 lpi or even 200 lpi is expected. However, some offset printer can only print 133 lpi or 100 lpi. If not otherwise specified, 175lpi is assumed to be the screen repetition for high quality CMYK offset print job and 133lpi for mono/multi color stationery printing.

5.4 RELATION BETWEEN THE RESOLUTION OF IMAGE AND OUTPUT DEVICES各 類須輸出器材之圖像精度需求 :

Quality
質素
Resolution of Output Devices
輸出器材精度(解析度)
dpi (dot per inch)
Output Resolution/Screen Repetition
輸出精度(解析度)
lpi (line per inch)
Minimum Resolution of Image
輸入圖像精度(解析度)最低要求
ppi (pixel per inch)
lower
 低
^
|
medium
 中
|
v
higher
高
370 dpi outdoors vinyle banner
50 ppi
600 dpi laser printer or inkjet printer
72 ppi (75 ppi)
720 dpi inkjet printer
96 ppi (90 ppi)
1200 dpi laser printer or inkjet printer
150 ppi (150 ppi)
1440 dpi inkjet printer
175 ppi (180 ppi)
2540 dpi image-setter 分色軟片輸出機 150 lpi; 175 lpi 300 ppi (317.5 ppi)
2880 dpi inkjet printer
350 ppi (360 ppi)
3600 dpi image-setter 分色軟片輸出機 200 lpi 350 ppi (450 ppi)
The following diagram illustration the effect of different output resolution (screen repetition or lpi) under magnifier
printing resolution


5.5 RELATION BETWEEN THE SIZE OF IMAGE AND SCALE OF OUTPUT 數碼圖像輸出大小與輸出器材之關係:

        The following are the scale of output that a digital imae of various resolution can reproduce. Note that the higher the resolution of the output device, the smaller the output image it will be. The size suggested below is adjusted to fit the conventional media size; they are somewhat different to the result obtained by theoetical calculation.

Quality IMAGE SIZE (pixel) Vinyle Banner (370dpi) 600/720dpi Printer 1200/1440dpi Printer Bromide Photo Paper / Lambda
(200-300ppi)
Image Setter

(2540dpi or up)

lower

^

|

medium 中

|

v

high 高

640x480 (300k) --------------- 3x5” 2.5x3” 2R
1.25x1.5”
800x600 (480k) 6x8” 4x6” 3x5” 3R
1.5x2.5”
1024x768 (800k) 8x10” 6x8” 4x6” 4R
2.5x3.5”
1280x960 (1.3mp) 13x18” 8x10” 6x8” 5R
3x4”
2048x1536 (3.1mp) 21x28” 12x18” 10x12” 8R
5x7”
2592x1944 (5mp) 27x36” 16x20” 12x18” 10R
6x8”
3264x2176 (7.1mp) 30x72” 18x24” 14x20” 18R
8x12”
3264x2448 (8mp) 36x72” 20x24” 16x20” 18R
10x12”
9mp-10mp 40"x56" 20"x28" 18"x24" 16"x20" 11" x 14"
12mp 44"x 60" 24" x 32" 20"x28" 18" x24" 12"x16"
4992x3238 (16mp) 48x72” 28x40” 22x30” 20"x28"
12x17”
